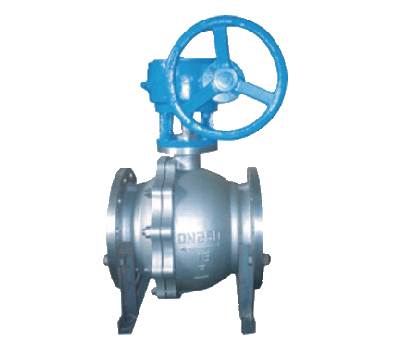

product name：Stainless steel worm gear ball valve Q41F (Q341F) -16P (R)

Product number：
Product caliber：
Product pressure：
product material：

[Performance Specifications] Model Nominal Pressure PN (Mpa) Test Pressure (Mpa) Applicable Temperature (℃) Applicable Medium Housing Liquid Seal Gas Seal 1.6 2.4 1.76 0.6 150 Q41F-16P, Q341F-16P Weakly Corrosive Medium Q41F-16R, Q341F -16R corrosive media [materials of main parts] Model name ..

[Performance specifications of stainless steel valves]

model	Nominal pressure PN (Mpa)	Test pressure (Mpa)			Applicable temperature (℃)	Applicable medium
		case	Liquid seal	Gas seal
	1.6	2.4	1.76	0.6	≤150
Q41F-16P, Q341F-16P						Weak corrosive medium
Q41F-16R, Q341F-16R						Corrosive media

【Materials of main parts】

model	Part Name
model	Valve body	Ball, stem	Sealing ring	filler
			Reinforced PTFE	Polytetrafluoroethylene
Q41F-16P, Q341F-16P	Chrome nickel titanium stainless steel cast iron	Chrome nickel titanium stainless steel
Q41F-16R, Q341F-16R	Chrome nickel molybdenum titanium stainless steel cast iron	Chromium nickel molybdenum titanium stainless steel

Model: Q41F type-16
Nominal diameter DN (mm)	Dimensions (mm)									Weight (kg)
Nominal diameter DN (mm)	L	D	D1	D2	f	b	Z-Φd	H	L0	Weight (kg)
15	130	95	65	45	2	14	4--14	78	140	3
20	140	105	75	55	2	14	4--14	84	160	4
25	150	115	85	65	2	14	4--14	95	180	6
32	165	135	100	78	2	16	4--18	150	250	9
40	180	145	110	85	3	16	4--18	150	300	11
50	200	160	125	100	3	16	4-18	190	350	15
65	220	180	145	120	3	18	4--18	195	350	19
80	250	195	160	135	3	20	8-18	215	400	27
100	280	215	180	155	3	20	8-18	250	500	38
125	320	245	210	185	3	twenty two	8-18	285	600	58
150	360	280	240	210	3	twenty four	8-23	370	800	81
200	400	335	295	265	3	36	8-23	370	800	95

Model: Q341F stainless steel valve
80	250	195	160	135	3	20	8-18	460	-	55
100	280	215	180	160	3	20	8-18	490	-	70
125	320	245	210	185	3	twenty two	8-18	535	-	86
150	360	280	240	210	3	twenty four	8-23	570	-	115
200	400	335	295	265	3	26	8-23	630	-	227
